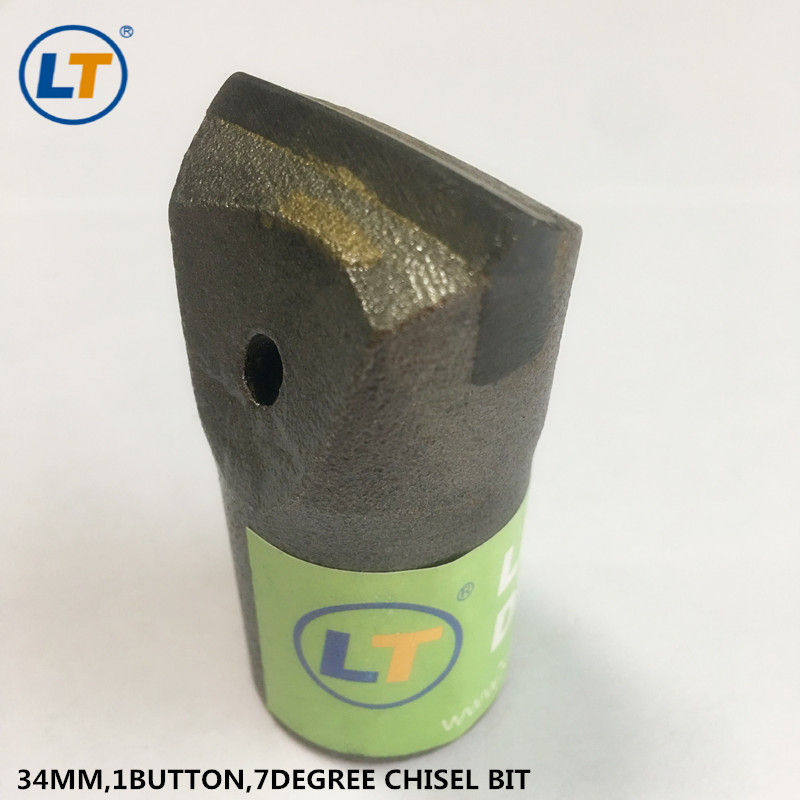

Product Name: Tapered chisel bit

Diameter: 34mm

Length: 65mm

Tapered Degree: 7°

Caebide Grade:YK15.6

Water Holes: 2 on side


Product Parameters:

Tapered chisel bits from rock drill bits factory Litong, suitable for mining of black metal mines(such as iron mine, manganese etc), nonferrous metal mine(such as gold, silver, copper etc), marble and granite etc. Its drilling depth usually is 15m-18m in case of hardness grade F8-14. At present, we offer rock drill bits including Horse Shoe Bits and Chisel bits. Chisel is more popular in Saudi Arabia, and it\'s suitable for hard rock drilling.

It is widely used in drilling holes with a depth size less than 5 meters and diameter scope in 20-45 mm by light-duty hand hold drills, like Y6, Y10, Y24, major use in natural dimensional stone quarry for small hole drilling, block\'s trimming and 2nd splitting for small blocks. To match Hexagonal 22 mm and Hexagonal 12 mm’s tapered drill steel with 4/6/7/11/12 degree.

All tapered chisel bit are made with high quality of raw material through special heat treatment, The deliver capacity are very strong and can completely meet customer’s requirements on delivery design.
